Engineering Grade Retro Reflective Tape (77066)

Engineering Grade Retro Reflective Tape designed for permanent and temporary traffic signage.

Constructed with high-quality, durable (7 years), enclosed lens retroreflective material and pressure sensitive acrylic adhesive, this film will perform with uniform visual reflectivity at all sign face orientations. Product may be screen printed, thermal transfer printed, thermal die-cut, flat bed sign-cut, drum roller sign-cut, or steel rule sign-cut.

APPLICATIONS:

  • Permanent and temporary outdoor signage.
  • Work zone devices.
  • Non-critical signs where retroreflection that exceeds ASTM D4956 Type I is necessary.

PHYSICAL PROPERTIES:

Film

Enclosed Lens Glass Beaded Retroreflective Urethane

Adhesive

Acrylic

Total Thickness (excludes liner)

6.0 mils (0.15mm)

Liner

6.8 mils (0.173 mm) White Polyethylene Coated Paper

90° Peel Adhesion (24 hrs)

43 oz/inch

Minimum Application Temperature

65°F

Temperature Range

-10°F to 150°F

Durability

7 years

Specification

ASTM D4956 Type I, EN-12899 RA1

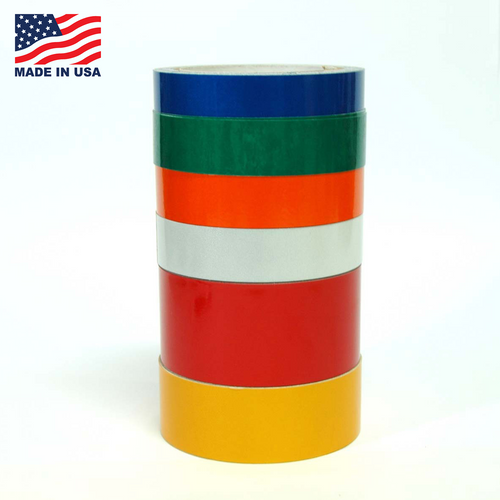

Available Colors (6)

Silver (white), yellow, red, orange, blue & green

RETROREFLECTIVITY:  ASTM D49562 Type I minimum coefficients of retroreflection (RA)

Observation Angle

Entrance Angle

White

Yellow

Red

Orange

Blue

Green

0.2°

-4°

70

50

14

25

4

9

30°

30

22

6

7

1.7

3.5

0.5°

-4°

30

25

7.5

13

2

4.5

30°

15

13

3

4

0.8

2.2

RA = Candelas per lux per square meter (cd/lx/m2) or candelas per foot-candle per square foot (cd/fc/ft2)
Show More Show Less
UPC:
653020412935
SKU:
77066
Weight:
0.25 LBS
Item Length:
Select Your Options
Total Items:
Select Your Options
Color: *
Width: *
Length: *
Quantity:
Pack Size: *
Total:
$9.00 Select All Required Options
Item Price:
Select Your Options
Free U.S. Shipping Available
Photos Options View Cart shipping Info
Total: $9.00 Select All Required Options
Item Price:
Select Your Options
Product Data Sheet Download Catalog
