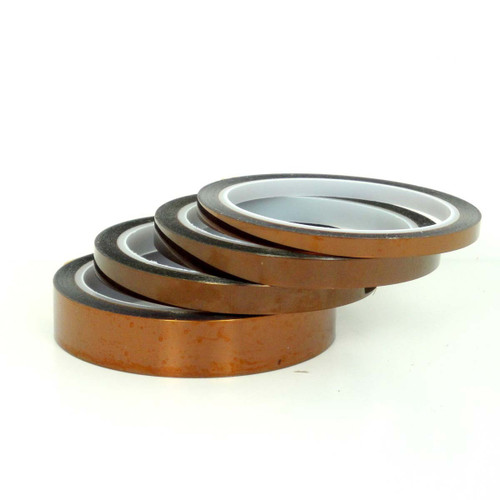

Kapton Alternative Polyimide Tape
Zoom the image with the mouse
Kapton Alternative Polyimide Tape
Kapton Alternative Polyimide Tape
Kapton Alternative Polyimide Tape Case and Subpack Count

Polyimide Tape - Kapton Alternative (7000X)

Polyimide Film Tape (7000X) is a electrical grade Kapton™ alternative Polymide film coated with a high performance silicone adhesive.  Thin and conformable with outstanding tear and abrasion resistance at elevated temperatures.  Adhesive will thermoset to increase adhesion values.  Leaves minimal residue when removed after manufacturing process; reduces clean-up time and minimizes rejects.  Permits observation of board during processing.  Excellent resistance to acids, oils, solvents, aging, staining, water immersion. Protects gold contacts from molten solder during hot air wave solder leveling process.  Film meets UL510.  3” plastic core.

APPLICATIONS:

  • Masking applications where very high temperatures are involved.
  • Used to protect gold contacts from molten solder during wave soldering process.
  • Wrapping and fixing of electronic components, coils, transformers, etc.

PHYSICAL PROPERTIES:

Film Thickness 1 mil (70000)     2 mil (70002)
Tape Thickness 2.6 mil 3.5 mil
Adhesion 23.8 oz/in 27.4 oz/in
Tensile Strength >20.6 lbs/in >36.5 lbs/in
Elongation >30% >70%
Dielectric Strength   >4000 V >8000 V











Alternative to: Bondtec #911-325; Electro Tape #95-2; Anchor #K-350; American #304-2; Permacel #P-222; T&F #3903; Taconic #6325-02; Berry Plastics #2345-2; Tesa #4429; Ideal #9322; Solar Plus #KA105#50; Dewal #303-2.

Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.

Show More Show Less
UPC:
653020410610
SKU:
70000
Weight:
1.00 LBS
Item Length:
Select Your Options
Total Items:
Select Your Options
Grade: *
Width: *
Quantity:
Pack Size: *
Total:
$5.90 Select All Required Options
Item Price:
Select Your Options
Free U.S. Shipping Available
Photos Options View Cart shipping Info
Total: $5.90 Select All Required Options
Item Price:
Select Your Options
Product Data Sheet Download Catalog
