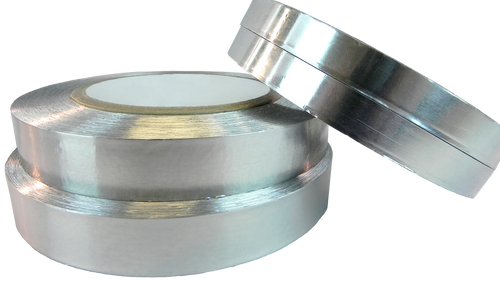

Self Wound Aluminum Foil Tape (460X0)

Aluminum Foil Tape 2 Mil - Self Wound without Liner

Description:

2 mil self wound dead soft malleable Aluminum Foil coated with acrylic adhesive. Malleable foil conforms well to irregular surfaces. Excellent harness wrap tape. Designed for non-critical applications such as sealing out dust and moisture, masking and duct sealing. Can be used for heat reflection in the appliance industry and as a mask for electroplating. This linerless product saves time and labor in stripping of release liner and produces less waste.

Physical Properties:

Total tape thickness   3.3 mil
Adhesion to steel   50 oz/in
Elongation   3.5%
Tensile strength   17 lbs/in
Temperature range   -40°F to 350°F
3” neutral core


Alternative to 3M #431; Lamart #520SW; Venture #807-2 & #2520CW

Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.

If you need assistance when ordering: Call Us at (877) 284-4781.

Aluminum Foil Tapes (without liner) - Self Wound Acrylic Adhesive

Description:

3 mil high strength self wound dead soft Aluminum Foil coated with an aggressive acrylic adhesive system to create a superior bond. Designed to stick firmly to its own backing. Malleable foil conforms well to irregular surfaces. Premier product for masking in paint stripping and electroplating. Used for waterproofing, vapor barri- er and air leakage protection, metal patching and sound dampen- ing, as a sealing system in refrigerated appliances and microwave ovens. High reflectivity assures effective heat, light interference, and electrical insulation shielding. 3 mil foil protects outdoor cable splices. Can be applied at low temperatures.

Physical Properties:

Total tape thickness   4.5 mil
Elongation   5.5%
Adhesion to steel   50 oz/in
Tensile Strength   28 lbs/in
Temperature range   -30°F to 325°F
Type II printed in 3" core. UL723


Alternative to Venture #805-3 & #2519CW; 3M #425; Permacel #P-14; Lamart #213M; Polyken #345; Shurtape #AF-75; Scapa #T3612; Ideal #489.

Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.

If you need assistance when ordering: Call Us at (877) 284-4781.
